GS-2000 |
GS-2010 |
|

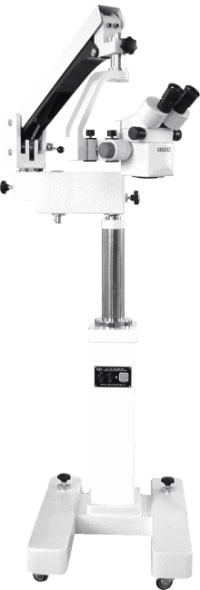

GS-2000/GS-2010 operation Microscope |
Use:
Gs-2000 operation microscope is a kind of excellent micro-optical instrument, widely used in the anastomosis of capillaries and nerves in orthopedics, hand surgery, plastic surgery, gynecology and obstetrics and other surgical micro-operations. It's also suitable for the micro-surgical experiment on animals and cosmetology. So it's a medicinal instrument of high quality but with a reasonable price in the field of microsurgery.
Characteristics:
* Operated by 2 persons at the sometime; also convenient for spectacled runners because of its big eye-reach pantoscopic eyeglass and high eyespot.
* Clear images shown independently by the 2-system small object glass; strong stereoscopic sense; same brightness to 2 eyes; a wide field of image.
* Excellent cold light source condense system with well-distributed facula; high illumination adjustable.
* Portable and convenient rack, light, artistic and stable.
* New type of minitrim mechanism with a steady longevity.
* Electronic switch, safe, dependable, with longevity.
* Foot-operated minitrim switch, portable, safe and dependable.
* Single-purpose DF camera mouthpiece for users to choose cameras and gather data
Technical parameter
Magnifying power |
objective lens |
field of vision |
10X |
200mm |
27.5mm |
9X |
250mm |
38mm |
7X |
300mm |
44.0mm |
Eyepiece: 12.5X/27.5mm extensive-angle eyepiece
Eye distance: 55mm~75mm built-in synchronous detector
Rougn tuning scope:350mm.
Fine tuning scope:60mm
Extension length of trans-arm: 1000mm.
Circling angle of trans-arm: 300o
lighting degree of operation surface: >35000Lx |
|
GS-2020A |
|
 |

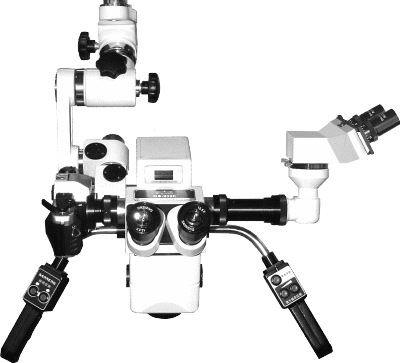

GS-2020 Surgical Microscope for Neurosurgery
Application
GS-2020 surgical microscope is a precision optical instrument which is used to amplify stereomicroscopically tissue anastomosis and repair of blood capillary and nerve in the surgical operation for orthopedies, neurosurgery, five-sense-organ.
GS-2020 surgical microscope is composed of observation optisal-system, including objestive lens, optical system with variable magnifying power, eyepiece as well as lighting system, stand and electric installation.
GS-2020 surgical microscope has a combination design structure. It is made up of various relative fittings according to the different application rrequirements of customers.
1. Objective lens working distance of surgical microscope: 200mm/250mm/300mm/400mm.
2.Electric continuous change of multiplier: 6.5:1.
3.Magnifying power of Gs series of surgical microscope.
| objective lens |
Magnifying power |
field of vision |
200mm |
5.3X~32X |
38~8.5mm |
250mm |
4X~26X |
48~10.5mm |
300mm |
3.6X~22X |
66~12.6mm |
4.Eyepiece: 12.5X extensive-angle eyepiece with built-in differentiation plate for micrometering;
Pattern value:0.1mm Graduation 10mm.
5.Eye distance: 55mm~75mm built-in synchronous detector.
6.Distance between objective lens and ground: 850mm~1400mm.
7.Rougn tuning scope:550mm.
Fine tuning scope:40mm.
8.Extension length of trans-arm: 1200mm.
Circling angle of trans-arm: 360o
9.Object match: DF-1000 camera.
10.Magnifying power of two-eye assistance lense
Objective lens |
Magnifying power |
field of vision |
200mm |
5.3X~32X |
35~7.8mm |
250mm |
4X~26X |
45~10.5mm |
300mm |
3.6X~22X |
62~12mm |
Two-eye assistance lense can be installed on the left or right side,
horizontal circle angle: 180o; vertical circle angle: 360o
11.Selective match: three-eye assistance lens with the output of pick-up camera, CCD pick-up camera.
12.Selective match: digital camera and optical joint.
13.Built in coaxial cold-light illumination, 15V/150W brightness with 300W neon lamp system,
lighting degree of operation surface: >55000Lx |
GS-2040 |
|
|
GS-2040 Surgical Microscope for deeper in the cavity
Application
It is an observation microscope used in micro-surgical operation of the surgery in the departments of five sense organs, orthopedies, neuroaurgery, eye, gynaecology and other medical treatment process. |
 |
 100mm |
 |
Features
1.Magnifying power with continuous change:2.6X~25X
2. Objective lens of electric focusing initiated within our home-land, contirnously, observation optical axis is deep in the cavity, it can
extend freely within the organization(scope of 150mm~250mm) without necessity of mechanical fine tuning.
3. Great depth of field and visual field as well as high resolving power.
4.Optical coaxial focusing (fine tuning), observing objects near or far as the same, scope:100mm.
5.Super-short lens body, it is especially convenient for the use of Asian, the distance between eyepiece and objective lena is 210mm.
6. Hexagonal-direction lens body can move freely, angle of pitch is ±180°,left & right ±45°.
Main technical index
Basic performance |
Typical number value |
Variable focus objective 250~150mm |
250mm |
200mm |
150mm |
Magnifying power
2.6X~25X |
2.6X~17X |
3X~20X |
3.8X~25X |
depth of field
65~3mm |
65~6mm |
35~4.5mm |
25~3mm |
field of vision
100~12.5mm |
100~17mm |
80~15.5mm |
60~12.5mm |
7.Eyepiece: 12.5X/27.5mm extensive-angle eyepiece with built-in differentiation plate for micrometering;
Pattern value:0.1mm Graduation 10mm.
8. Eye distance: 55mm~75mm
9.Change of multiplier: 6.5:1
10.Weight if main microscope: 3.6kg
11.Cold-light illumination: 15V/150W
12.Rougn tuning scope:550mm
13.Distance between objective lens and ground: 714mm~1214mm
14.Extension length of trans-arm: 1200mm Circling angle of trans-arm: 360° |
